StarTech Mini-SAS Adapter, Dual SFF-8643 to SFF-8644, with Full and Low-Profile Brackets, 12Gbps, TAA
Item #: STCMSTCDP122DP
Ships in 6-10 Bus Days
Non Returnable
Special Order Item
Shippable Product
Manufacturer:
StarTech.com
Catalog:
General Line (consumer) Catalog
Catalog page:
NEW
Manufacturer
StarTech.com
Manufacturer Part Number
SFF86448PLT2
Manufacturer Website Address
https://www.startech.com
Brand Name
StarTech.com
Product Name
Dual SFF-8643 to SFF-8644 Mini-SAS HD Adapter
Marketing Information

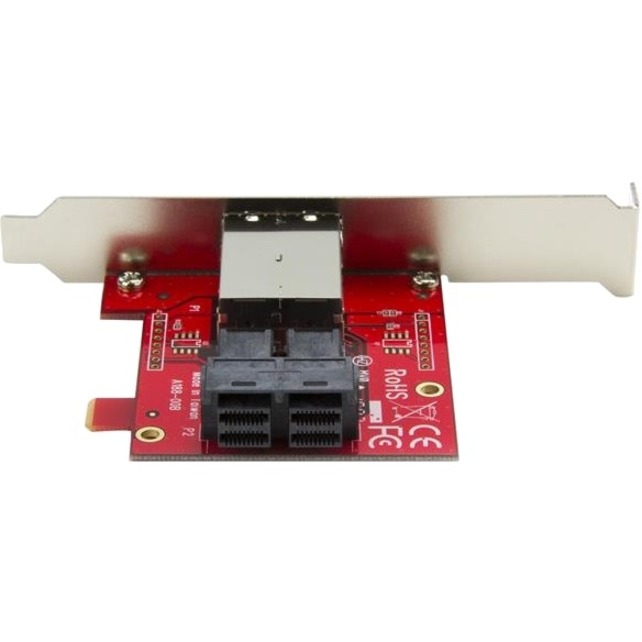

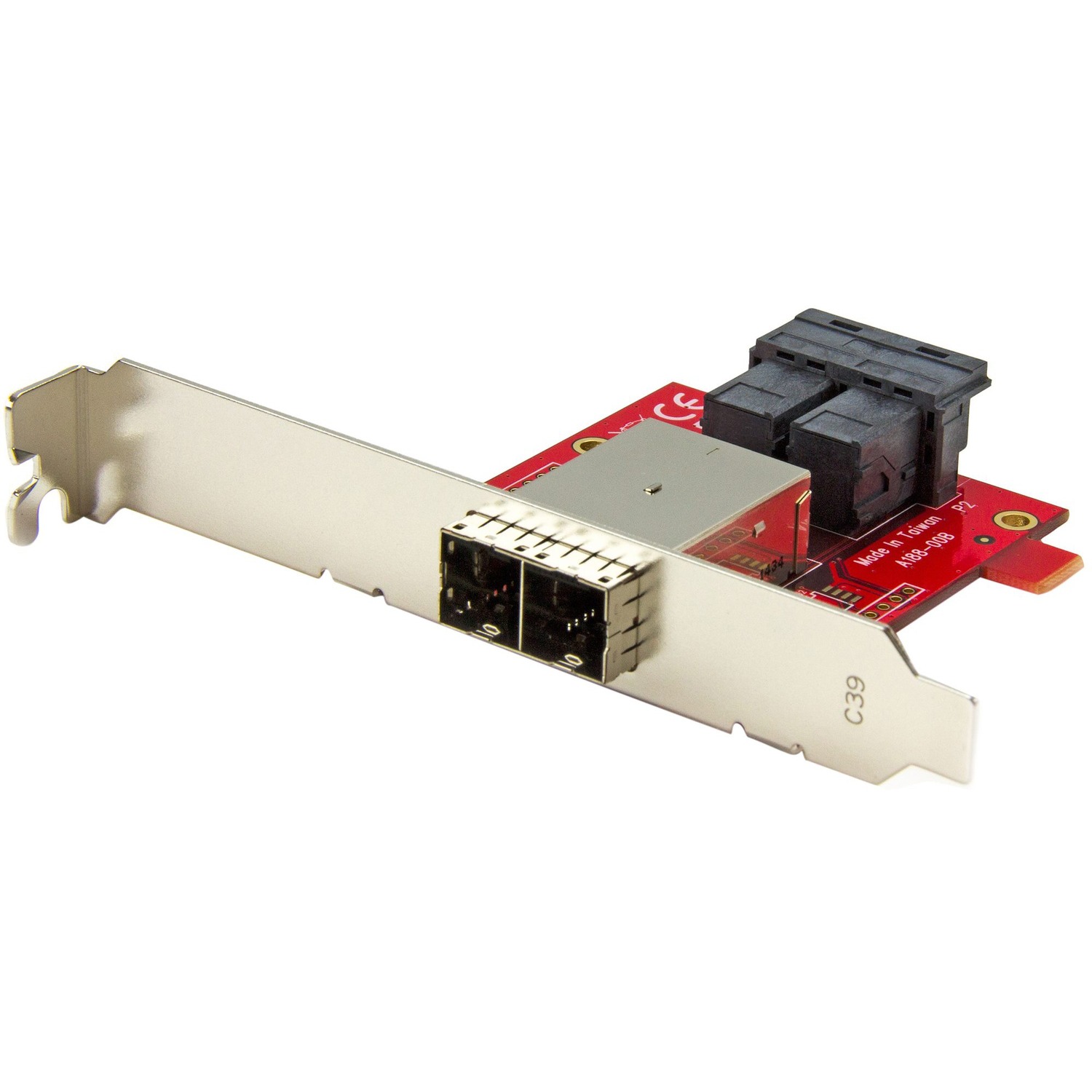

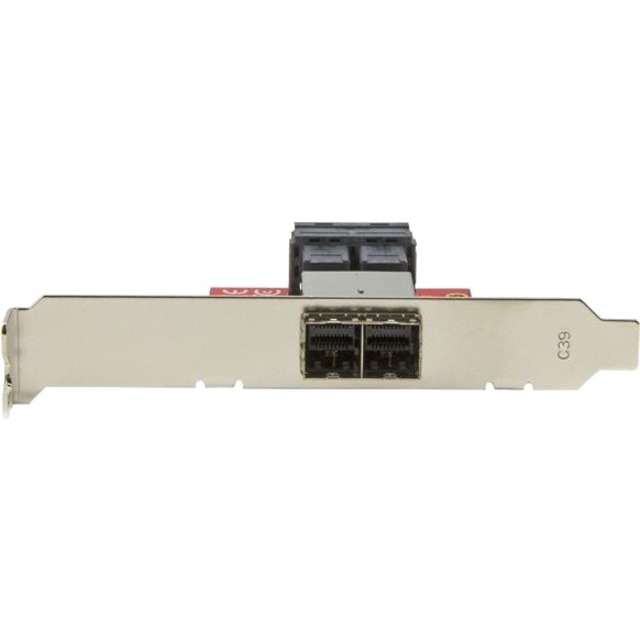

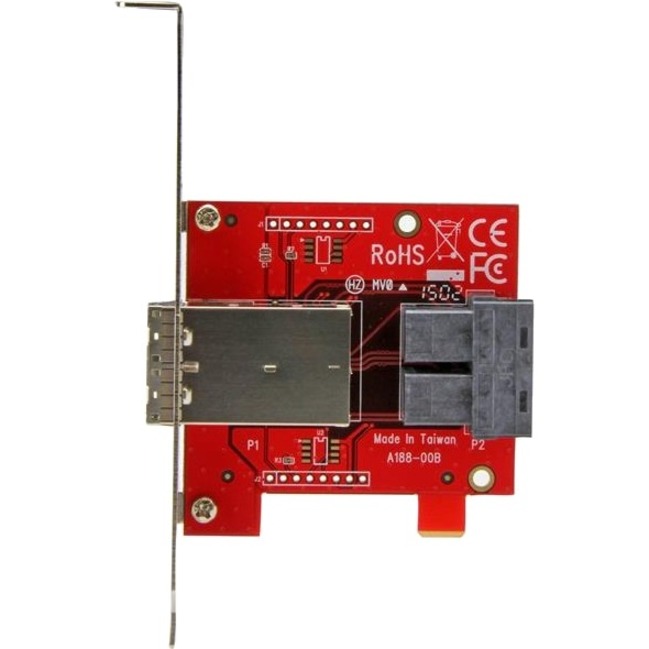

This Mini-SAS adapter lets you convert two internal SFF-8643 ports on a controller card into two external SFF-8644 ports. This enables you to connect external SAS or SATA drives in devices such as a Direct Attached Storage (DAS) device to an internal backplane or SAS controller for additional storage. The adapter can connect up to eight drives in total and is compatible with 12Gbps SAS drives as well as 6Gbps SATA drives.For a hassle-free installation, you can mount the adapter into any new or legacy desktop expansion slot, including: PCI, AGP, and PCIe. To ensure compatibility with most computer cases, full-profile and low-profile mounting brackets are included. The SFF86448PLT2 is backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer
Packaged Quantity
1 Each
Product Type
Mini-SAS Card Adapter
Convert two internal SFF-8643 ports into two external SFF-8644 ports - Mini SAS Adapter - SFF-8643 to SFF-8644 - Dual SFF-8643 to Dual SFF-8644 - 12Gbps - with Full and Low-Profile Brackets
- Compatible with 12Gbps SAS drives and backward compatible with 6Gbps SAS and SATA drives
- Equipped with a full-profile bracket and includes a half-height/low-profile bracket for installation in small form-factor computers
Manufacturer
StarTech.com
Manufacturer Part Number
SFF86448PLT2
Manufacturer Website Address
https://www.startech.com
Brand Name
StarTech.com
Product Name
Dual SFF-8643 to SFF-8644 Mini-SAS HD Adapter
Marketing Information
This Mini-SAS adapter lets you convert two internal SFF-8643 ports on a controller card into two external SFF-8644 ports. This enables you to connect external SAS or SATA drives in devices such as a Direct Attached Storage (DAS) device to an internal backplane or SAS controller for additional storage. The adapter can connect up to eight drives in total and is compatible with 12Gbps SAS drives as well as 6Gbps SATA drives.For a hassle-free installation, you can mount the adapter into any new or legacy desktop expansion slot, including: PCI, AGP, and PCIe. To ensure compatibility with most computer cases, full-profile and low-profile mounting brackets are included. The SFF86448PLT2 is backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer
Packaged Quantity
1 Each
Product Type
Mini-SAS Card Adapter
Color Family
Black
Product Color
Black
Height
0.9"
Width
4.7"
Length
2.9"
Weight (Approximate)
1.90 oz
Package Contents
- Dual SFF-8643 to SFF-8644 Mini-SAS HD Adapter
- 1 x Low-profile Bracket
Additional Information
Hardware
Ports: 4
Performance
Supported Protocols: SATA and SAS
Connector(s)
Connector A: 2 - SFF-8643 (36 pin; Internal HD Mini SAS) Receptacle
Connector B: 2 - SFF-8644 (36 pin; External HD Mini SAS) Receptacle
Ports: 4
Performance
Supported Protocols: SATA and SAS
Connector(s)
Connector A: 2 - SFF-8643 (36 pin; Internal HD Mini SAS) Receptacle
Connector B: 2 - SFF-8644 (36 pin; External HD Mini SAS) Receptacle
Certifications & Standards
- CE
- FCC
Country of Origin
Taiwan
TAA Compliant
Yes
Environmentally Friendly
Yes
2 Year
