StarTech.com

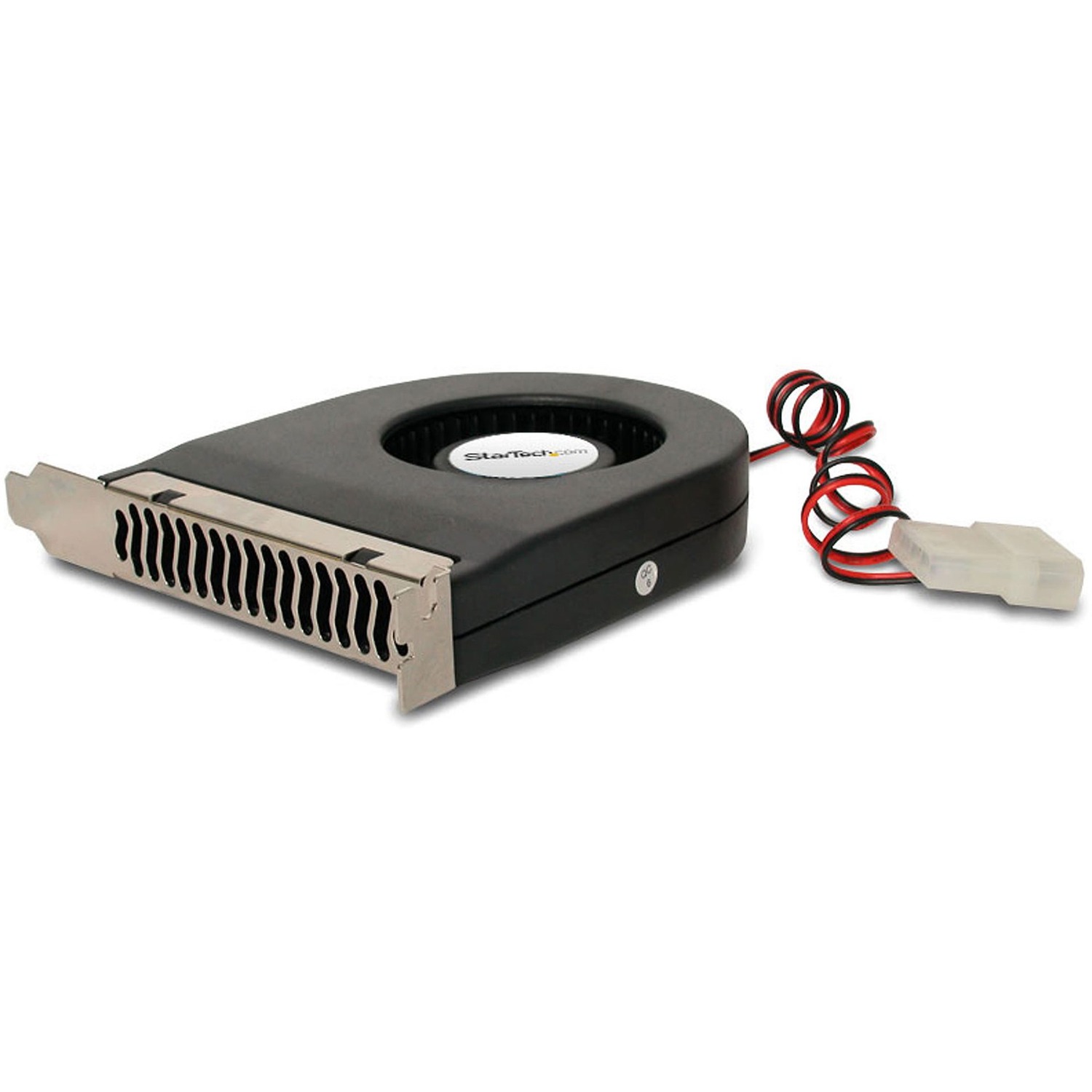

StarTech.com Expansion Slot Rear Exhaust Cooling Fan with LP4 Connector - PC Case Exhaust Fan/Video Card Cooler Fan - System fan kit

Item #: STCFANCASE
Manufacturer:
StarTech.com
Catalog:
Catalog page:
Manufacturer
StarTech.com
Manufacturer Part Number
FANCASE
Manufacturer Website Address
https://www.startech.com
Brand Name
StarTech.com
Product Name
Expansion Slot Rear Exhaust Cooling Fan
Marketing Information

This high quality PCI Fan is an add-in cooling fan designed to fit in the PCI, ISA or AGP expansion slots of any computer. The PCI fan helps improve expansion card (video card, etc.) performance, by preventing overheating, making it a great video card cooler for older, hot-running 3D graphics cards like the Voodoo, TNT2, GeForce256 and more.

Powered through a simple LP4 connection to the computer power supply, the quiet-running PCI Fan utilizes a brushless DC motor that helps maintain expansion card temperatures while creating minimal noise levels.

Compact enough to fit into almost any expansion slot such that airflow can be directed as needed most, StarTech.com's PCI Fan is backed by 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Packaged Quantity
1 Each
Product Type
Cooling Fan
Fits in standard full-profile computer cases; Ball bearing fan; Inline LP4 connectors; 12V @ 0.15A, 1.8W; 6.9 CGM @ 2,200 RPM; 32 dBA; Reversible bracket; NOTE: Does not support PWM for fan speed control and will operate at full speed

  • Up to 2200 rpm fan speed and heavy-duty shroud ensure safe and effective cooling
  • Features ball bearing to improve longevity, silence, and stability
  • 8.27" fan(s) with 4-pin LP4 Male connector enables quick and stable connection with cases
Manufacturer
StarTech.com
Manufacturer Part Number
FANCASE
Manufacturer Website Address
https://www.startech.com
Brand Name
StarTech.com
Product Name
Expansion Slot Rear Exhaust Cooling Fan
Marketing Information

This high quality PCI Fan is an add-in cooling fan designed to fit in the PCI, ISA or AGP expansion slots of any computer. The PCI fan helps improve expansion card (video card, etc.) performance, by preventing overheating, making it a great video card cooler for older, hot-running 3D graphics cards like the Voodoo, TNT2, GeForce256 and more.

Powered through a simple LP4 connection to the computer power supply, the quiet-running PCI Fan utilizes a brushless DC motor that helps maintain expansion card temperatures while creating minimal noise levels.

Compact enough to fit into almost any expansion slot such that airflow can be directed as needed most, StarTech.com's PCI Fan is backed by 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Packaged Quantity
1 Each
Product Type
Cooling Fan
Fan Bearing Type
Ball Bearing
Fan Speed (Max)
2200 rpm
Maximum Airflow
6.90 CFM
Noise Levels (A-Weighted)
32 dB(A)
Connectors
  • 4-pin LP4 Male
  • 4-pin LP4 Female
Input Voltage
12 V DC
Color Family
Black
Product Color
Black
Product Material
Plastic
Maximum Fan Diameter
8.27"
Fan Diameter Details

1 x 210mm

Fan Height
0.80"
Fan Width
3.50"
Fan Depth
4.30"
Weight (Approximate)
3.60 oz
Additional Information
  • Fan Bearing Type: Ball Bearing
  • Color: Black
  • Extended Description: PC Case Exhaust Fan/Video Card Cooler Fan
  • Slot Type: PCI or ISA

Advantage:

  • Increases air flow around the video card to improve system stability
  • Improves overall system airflow
  • Compact design allows it to fit into any expansion slot so airflow can be directed where it's needed most
  • Quiet operation for minimal system noise
  • Reliable ball bearing motor
  • Great for improving airflow around hot-running 3D cards like GeForce and Radeon

Applications/Solutions:

  • Provides extra cooling for your computer case
  • Ideal for cooling high performance video cards

Features:

  • Fan utilizes a quiet running brushless DC motor
  • High efficiency fan-blade design is capable of moving 36 CFM
Application/Usage
Case
Environmentally Friendly
Yes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin
China
2 Year
